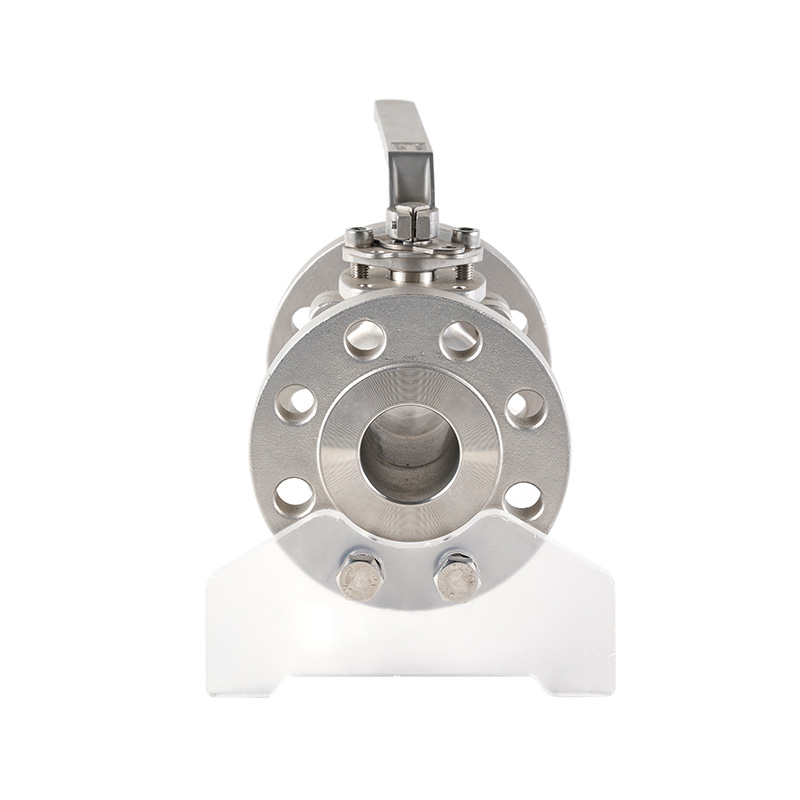

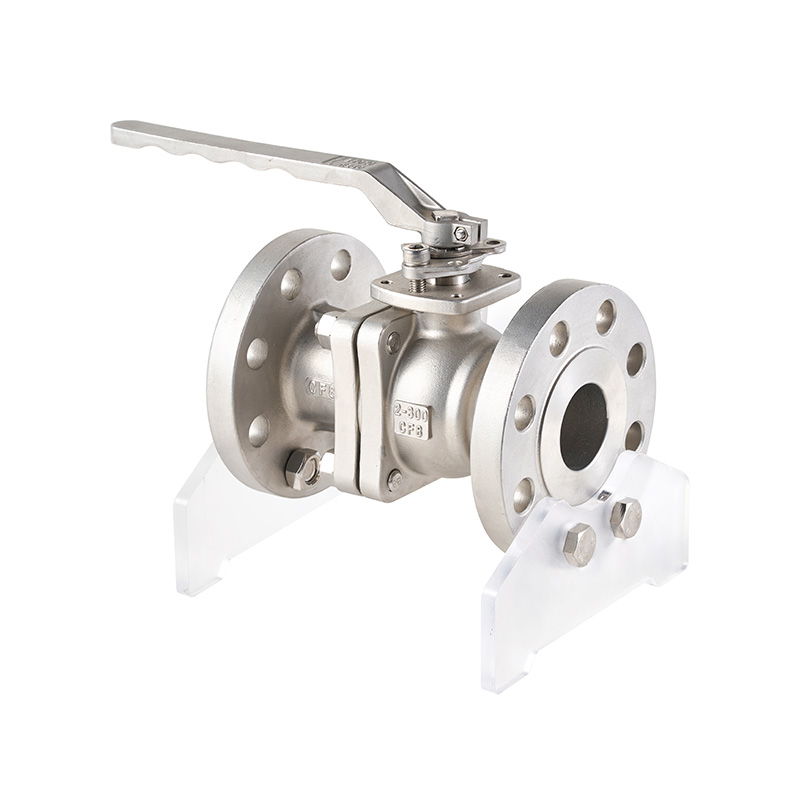

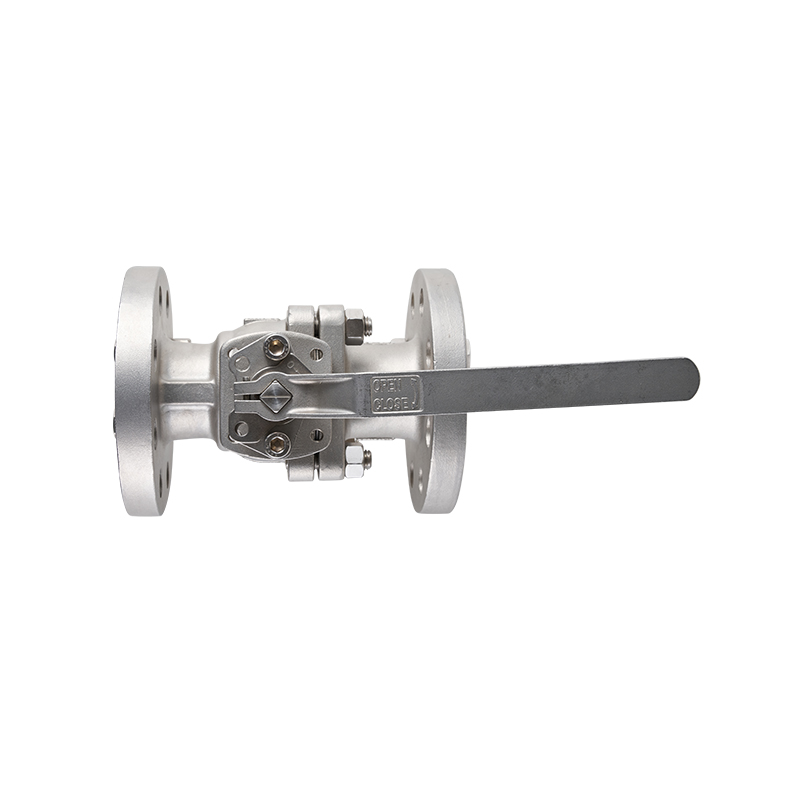

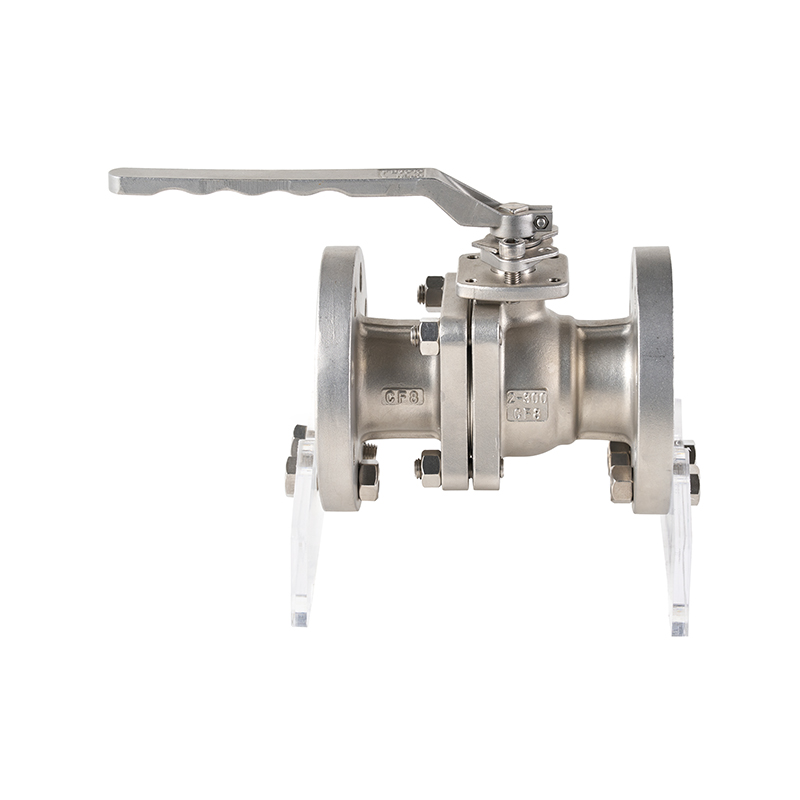

Two-piece Manual Flange Ball Valve

Home / Products / Ball Valve / Floating Ball Valve / Two-piece Manual Flange Ball Valve
Categories

Two-piece Manual Flange Ball Valve

Inquiry Now
Share:

  • Features
    1/2” to 8” (DN15 to DN200)

    W.P. JIS 10/20K ASME CLASS 150/300/600 DIN PN16/40
    W.T. -58~446°F (-50~230°C)
    Body Material Standard in WCB, CF8, CF8M, Other materials are available according to requirements.
    Face-to-faceDimensions JIS B2002 / ASME B16.10 /DIN3202-F4
    Flanged Dimensions JIS B2220 / ASME B16.5 / EN 1092-1
    Body Pressure Test JIS B2003 / ASME B16.34 / API 598 / EN 12266-1
    Seat Leakage Test JIS B2003 / ASME B16.34 / API 598 / EN 12266-1
    Fire Safe Design

    Certificated according to API 607

    Carbon steel construction to NACE MR-01-75
    Investment casting
    Blow-out proof stem
    Casting handle


    Full Port Design
    Full port construction improves flow characteristics for greater process efficiencies

    Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service

    Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated

    Live-Loaded Stem Packing
    Provides constant load on the stem seal and extends service life
