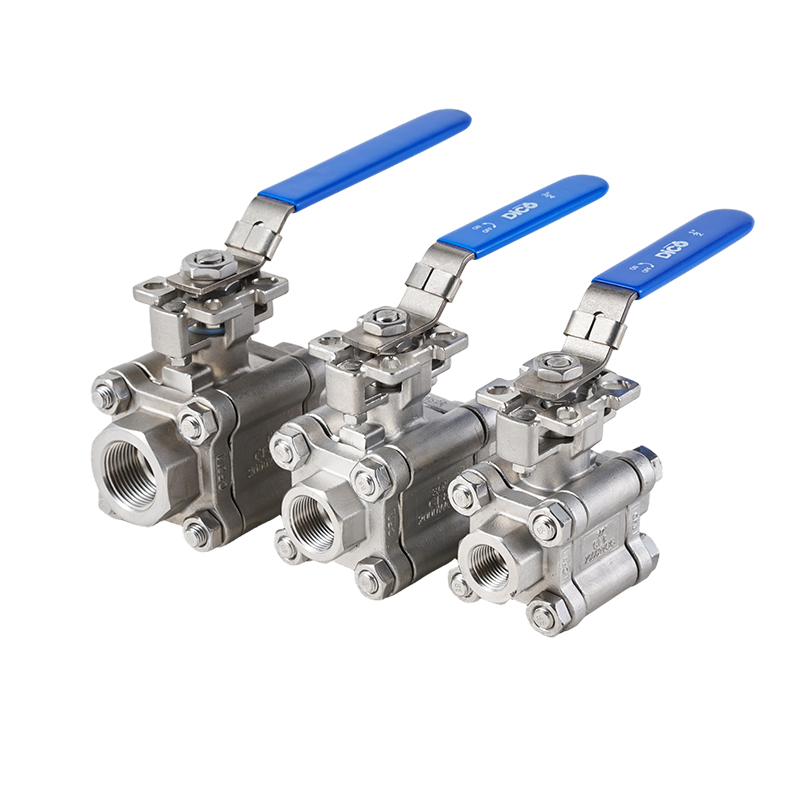

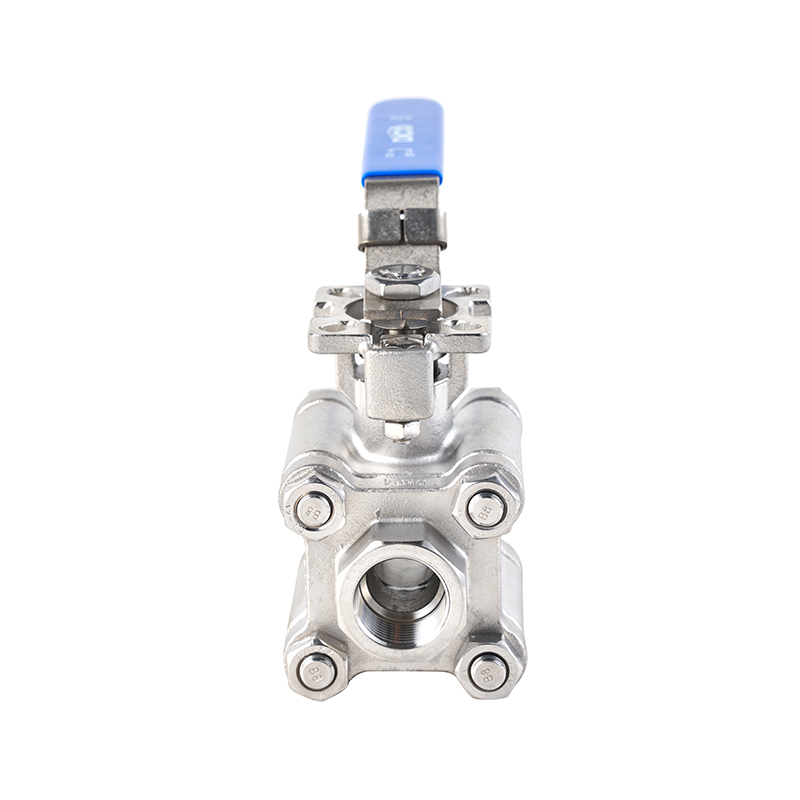

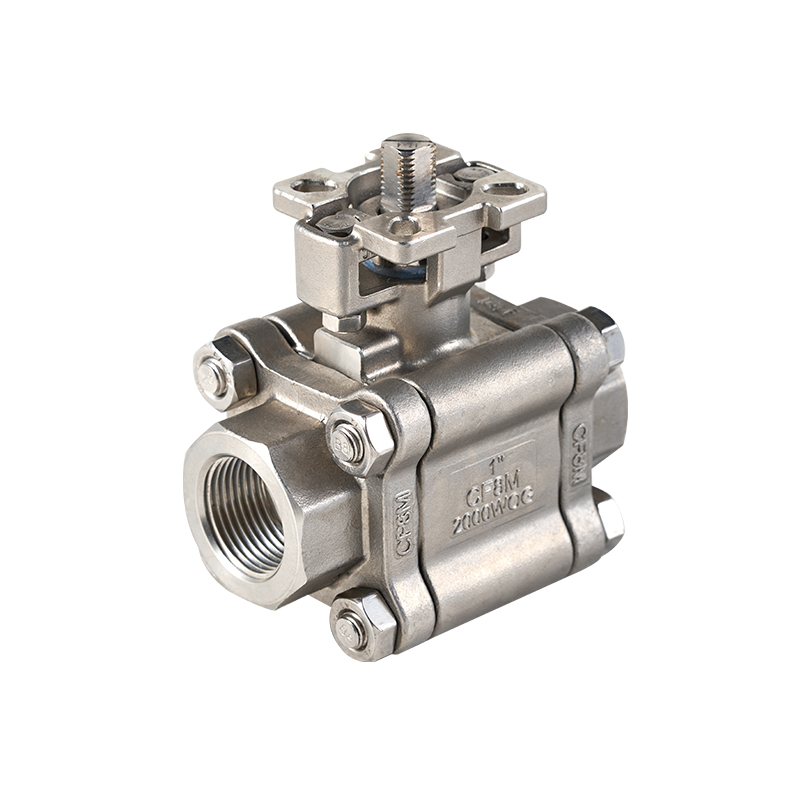

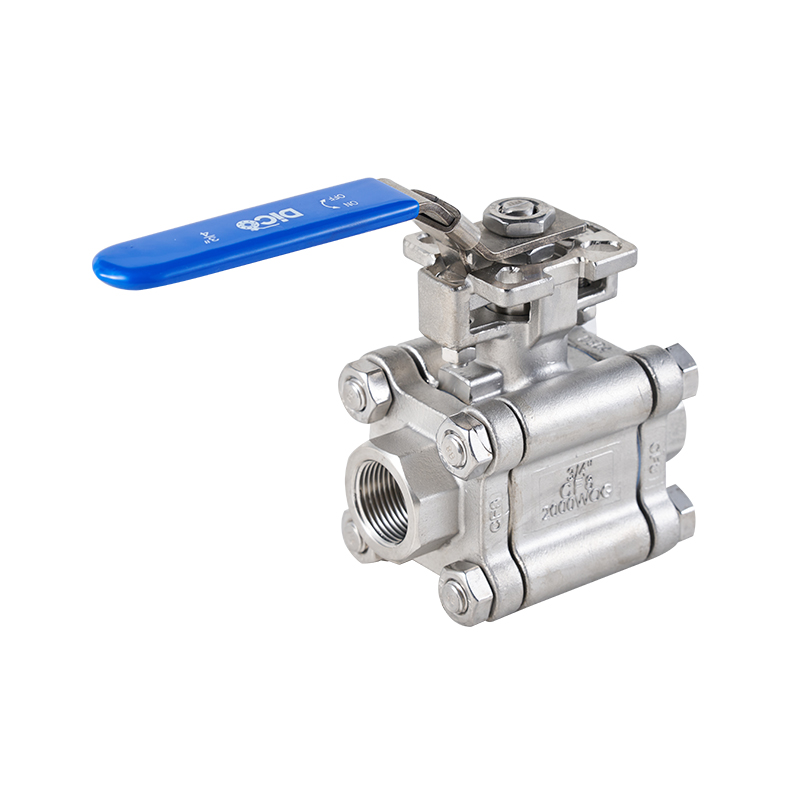

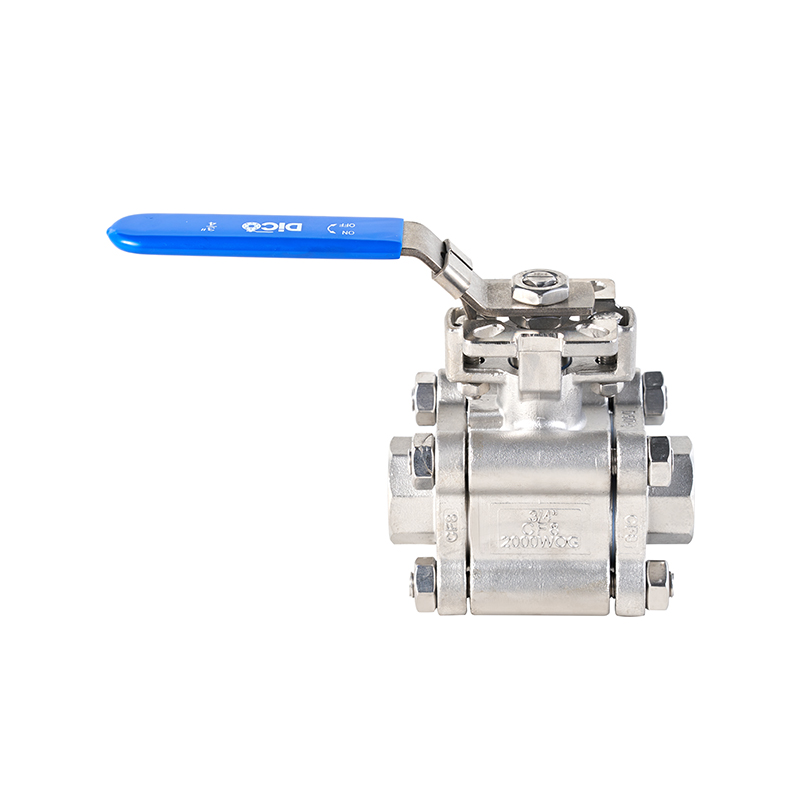

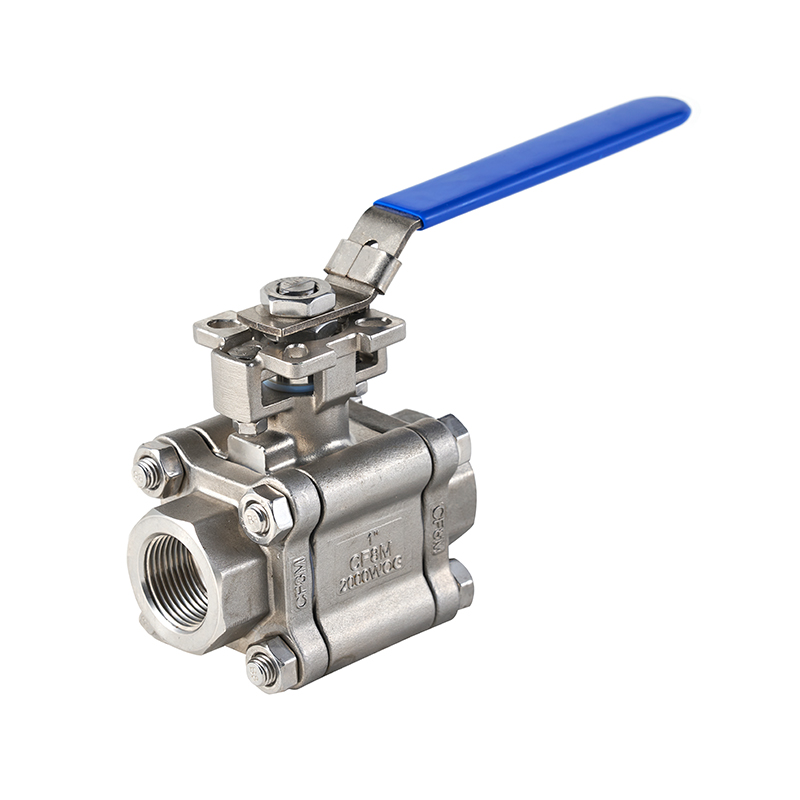

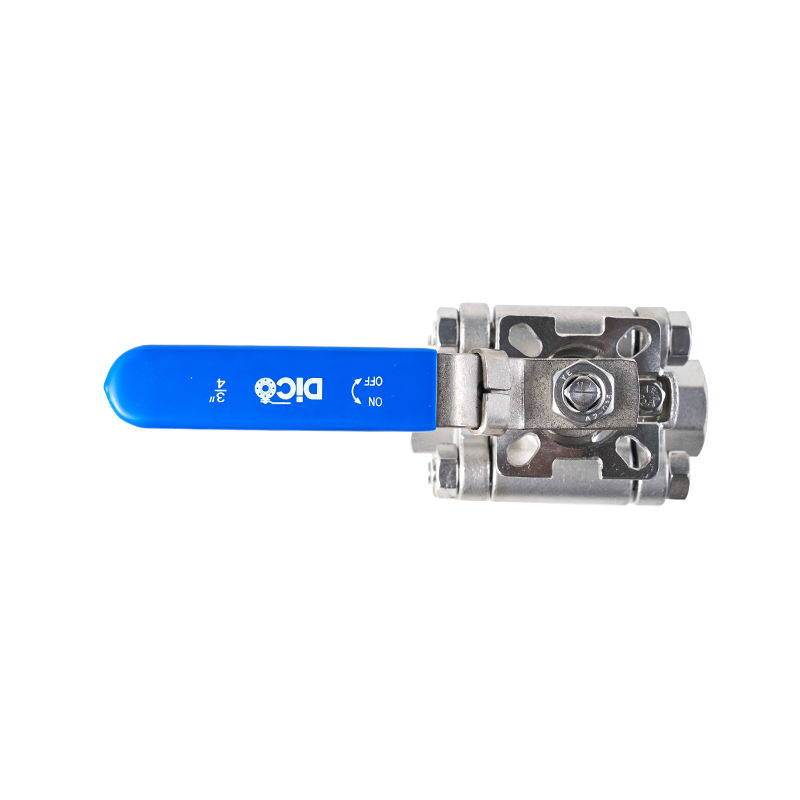

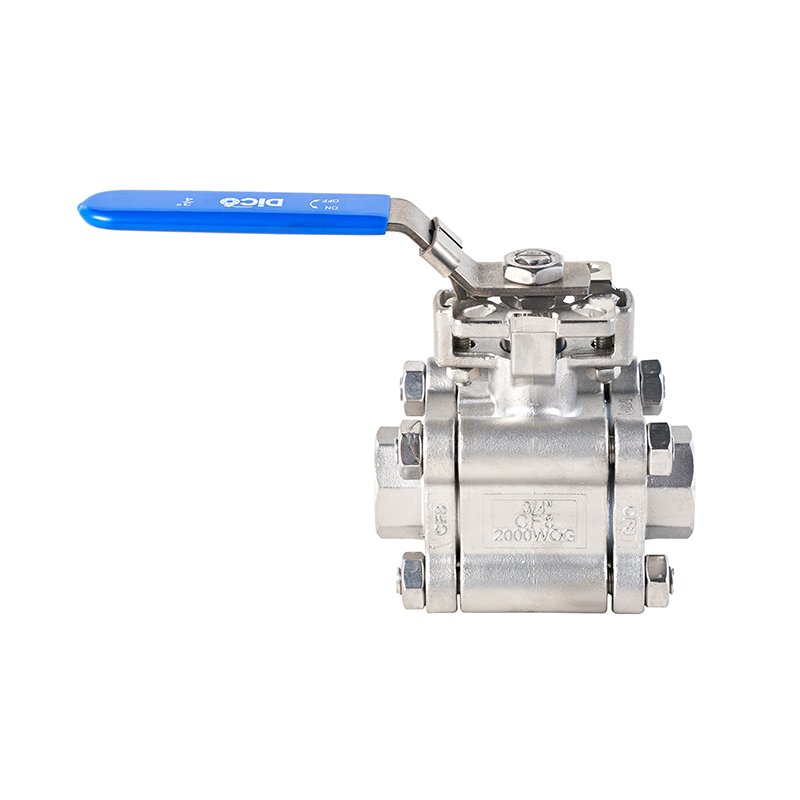

Three-piece High Platform Ball Valve 2000WOG

Investment cast 3-piece full port stainless  steel body/ball for unrestricted flow and minimum pressure loss. Adjustable live loaded  stem seal packing helps compensate for  wear, pressure or temperature fluctuations,  extending the cycle life of the valve. Blow-out  proof stem. Valve body held together with  bolts for easy maintenance.



Inquiry Now
Share:

  • Features
    Full port, 1/2“~2“ (DN15~DN50)

    W.P. 2000WOG (PN130)
    W.T. -20°C~180 °C
    Thread type  ASME B1.20.1(NPT), BSPT, BSP
    Socket weld type  ASME B16. 11& DIN3239 part2
    Butt weld type ASME B16.25 & DIN3239 part1
    Investment casting
    Blow-out proof stem
    Live-loading design
    Anti fire
    Anti-static device(option)
    Locking device handle
    Cavity filled seats(optional)
    ISO 5211 Directmounting pad
    Automation accessories(option)


    High Pressure Construction
    Body and seals designed to perform over a wide range of pressures and temperatures



    Applications
    Stainless steel ball valves with RTFE/Viton seals are typically used for  on-off control of water, air, oil, vacuum and other media compatible  with the materials of construction. Unique 3-piece investment cast  bolted body design offers the advantage of a swing-out body for easy  inline maintenance. Valves can be direct mounted to air or electric actuators using the standard ISO5211 mounting pad, eliminating the need  for extra mounting brackets and couplings.



    Operation
    Turning the hand lever one quarter-turn (90º)  rotates the ball from closed to the open position. A locking device allows for pad  locking the valve in either the open or closed  position for safety lockout applications. The  valve is actuator ready with standard  ISO5211 mounting pad and square output  shaft.



    Options
    Pneumatic Actuators
    Electric Actuators
    Gear Box
