Three-piece Butt-welded Ball Valve

Home / Products / Stainless Steel Ball Valve / 3PC Ball Valve / Three-piece Butt-welded Ball Valve
Categories

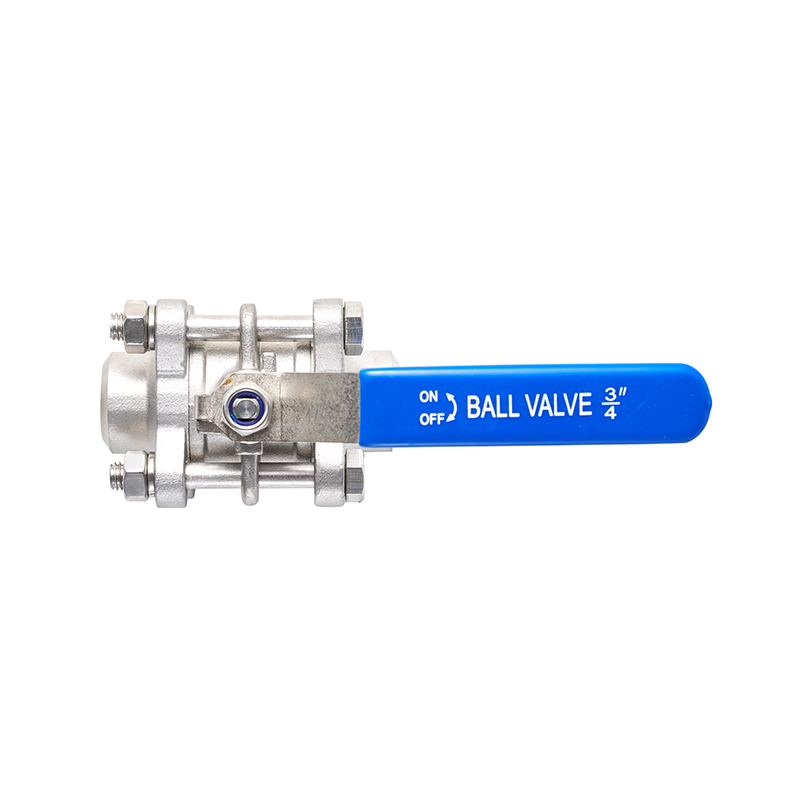

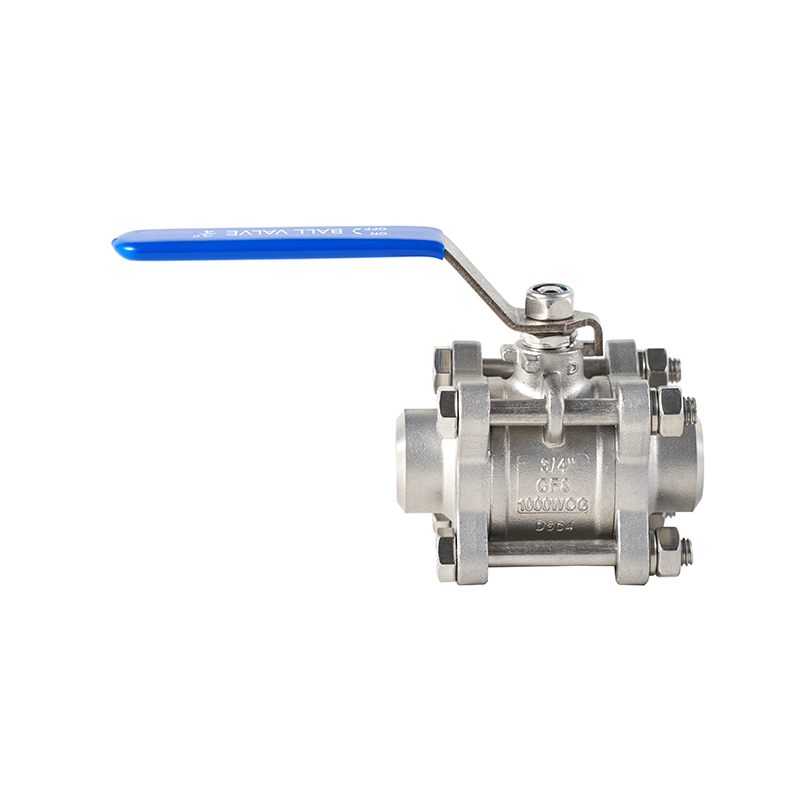

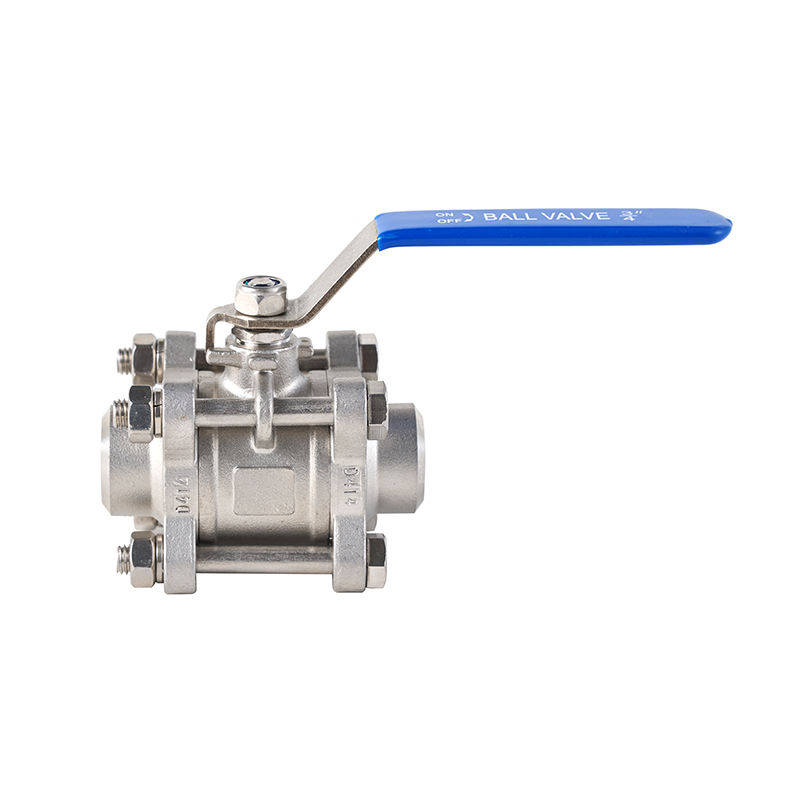

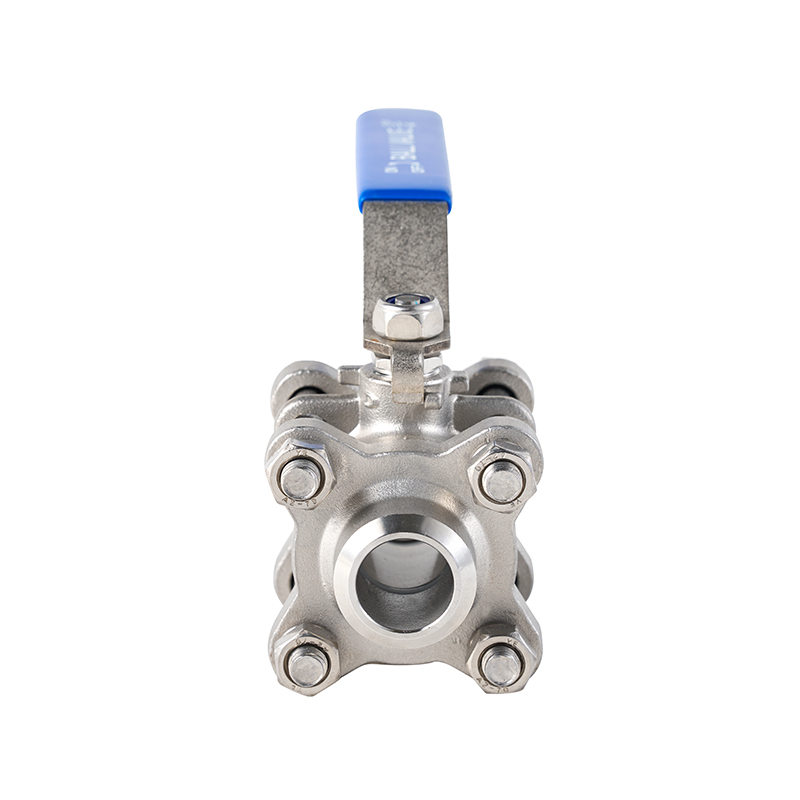

Three-piece Butt-welded Ball Valve

Inquiry Now
Share:

  • Features
    Full port, 1/4“~4“ (DN8~DN100)

    Material CF8, CF8M, WCB, 4A, 5A etc
    W.P. 1000WOG (PN63)
    W.T. -20°C~180 °C
    Butt weld type  ASME B16.25 & DIN3239 part1
    Investment casting
    Blow-out proof stem
    Locking device handle
    Cavity filled seats(optional)


    Full Port
    Full port construction improves flow characteristics for greater process efficiencies



    3-Piece Construction
    Easy to repair



    Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service



    End Cap Alignment Step
    Ensures easy and proper alignment between mating parts



    Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated



    Investment Cast
    Improves dimensional control and reduces porosity
