Z41 Z61 Casting Gate Valve

Home / Products / Gate Valve / Flange Gate Valve / Z41 Z61 Casting Gate Valve
Categories

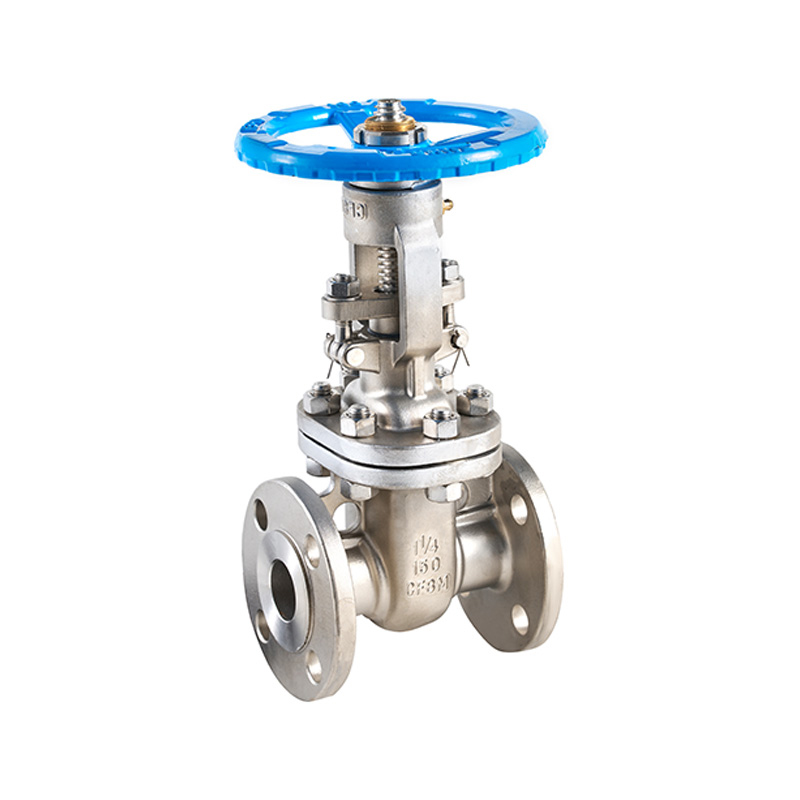

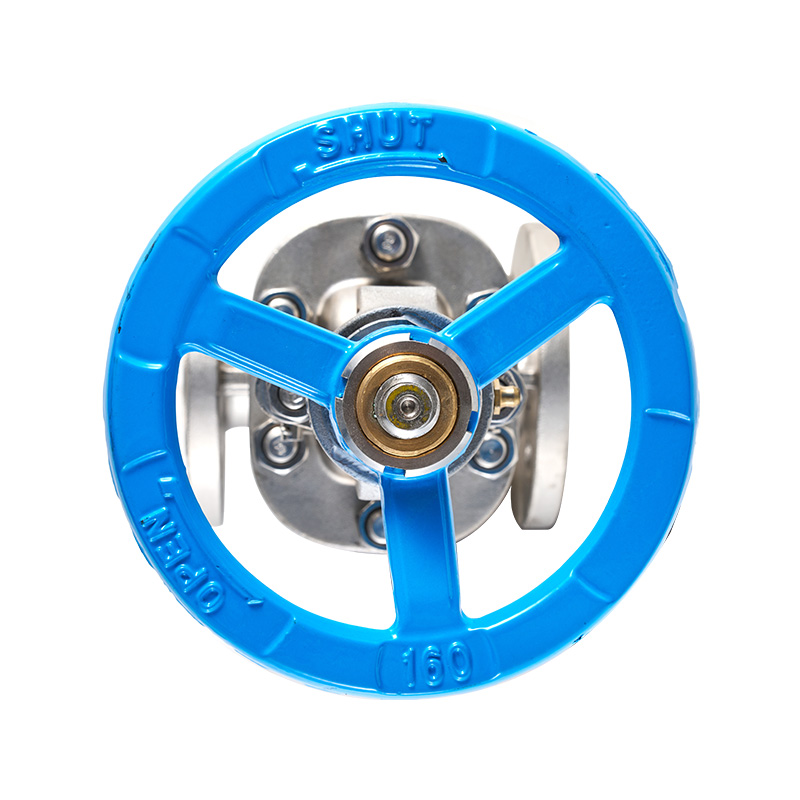

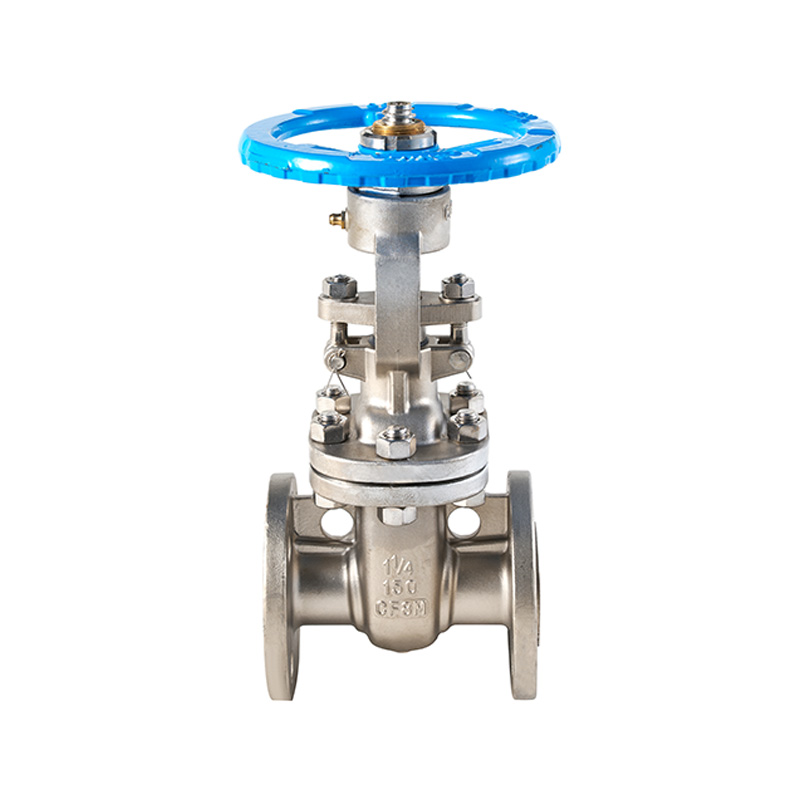

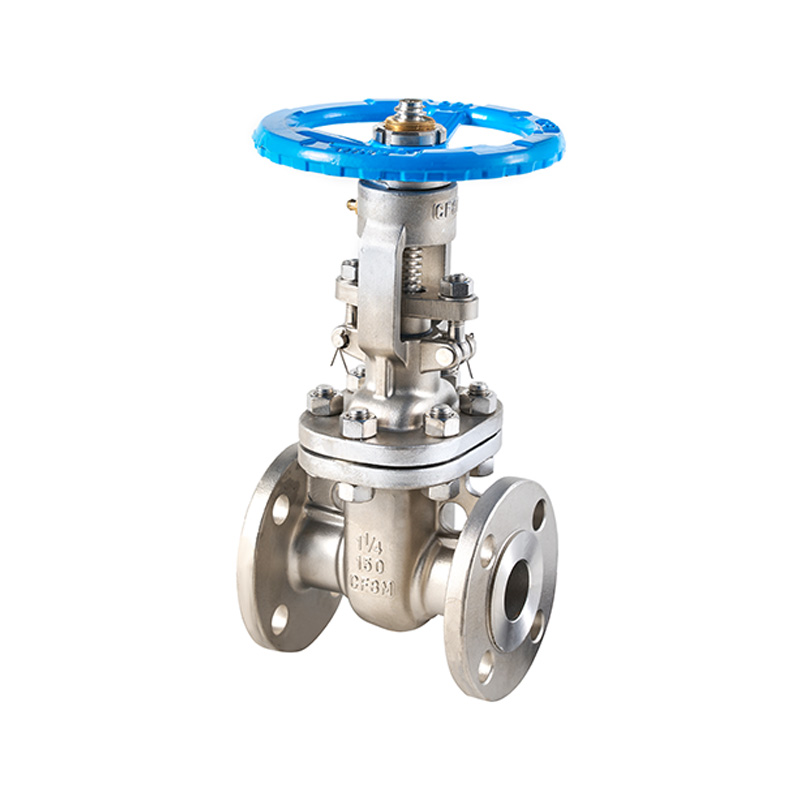

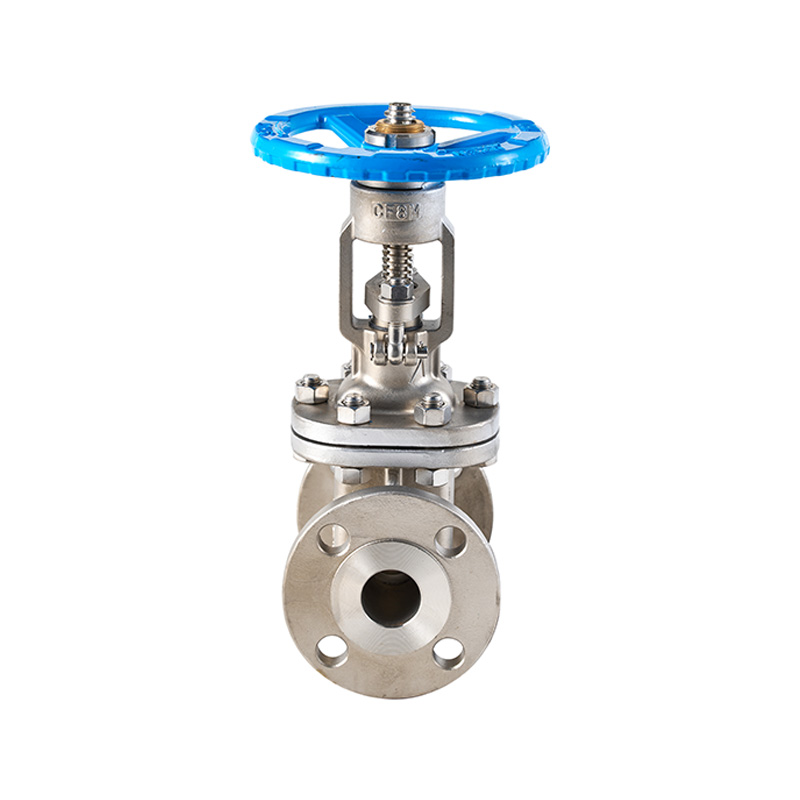

Z41 Z61 Casting Gate Valve

Inquiry Now
Share:
  • Material Stainless Steel A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M, etc. & Dupex steel, alloy steel option.
    Pressure 150LB/300LB/600LB/900LB/1500LB/2500LB
    Size 2"~36 inch (DN50~DN900)
    End Connection RF, BW, RTJ ends option
    Working Temp -196ºC~400ºC.
    Mode of operation Handwheel (2""~12"") & Bevel Gear (14""&above)
    Suitable Medium Water, Natural Gas, Oil and some corrosive liquids
    Features Rising stem, OS&Y, Bolted Bonnet or Pressure Sealed, non-rising stem option
    Locking Locking handwheel option
    Design standard API6D/API600
    Inspection&Testing According to API598
    Design & Manufacture standard API600/API6D/ASME B16.34
    Pressure & Temperature standard ASME B16.34
    Face to face dimension standard ASME B16.10
    Ends Connection standard ASME B16.5
